4 Motor Optical Fiber Fusion Splicer , Fujikura 41s Fusion Splicer CE certificate

Brand Name : Fujikura

Model Number : FSM-41S/38S

Certification : CE/ROSH/ISO9001

Place of Origin : Japan

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 100 sets permonth

Delivery Time : 5-10 working days

Packaging Details : 1 set per carton

Language : English or Chinese Optional

Motor : 4 motor

Typical splice loss : ITU-T G.652 : Avg. 0.03dB ITU-T G.651 : Avg. 0.01dB ITU-T G.653 : Avg. 0.05dB ITU-T G.655 : Avg. 0.05dB ITU-T G.657 : Avg. 0.03dB

Electrodes life : 5000 splices

Dispay : 5.0 inches color LCD

Size : 131W*201D*79H(mm)

Weight : 1300g

Splicing time : SM FAST mode : Avg. 6 to 7sec

Fiber type : Single mode optical fiber/Multi mode optical fiber

Splice mode : 100 splice modes

Heat mode : 30 heat modes

Splice result Storage : 10000 splices

Splice image Storage : 100 images

Contact Now

japan optic fiber optical clad alignment splicer fusion splicer fujikura FSM-41S kit FSM-38S

Fujikur has been the pioneer in fusion splicer technology since 1978. Through our extensive knowledge in optical technology, we have been continuously challenging ourselves in creating splicers that are well known for their ruggedness and reliability worldwide. Working closely together with Fujikura’s strong team of technical experts, our worldwide network of distributors are committed to give the best technical support & service to our customers. Please try to peek at the construction site of near your home. You might find a Yellow BOX, which is one of the unique features of the Fujikura Splicers.
User Friendly
1. Easy Fiber Protection Sleeve Positioning
The shape of the sheath clamp is optimized for the 60mm length protection sleeve. The
length from splice point to the edge of the sheath clamp is 30mm. Therefore, it is easy
to center the protection sleeve over the splice by using your finger as the reference
splice point.

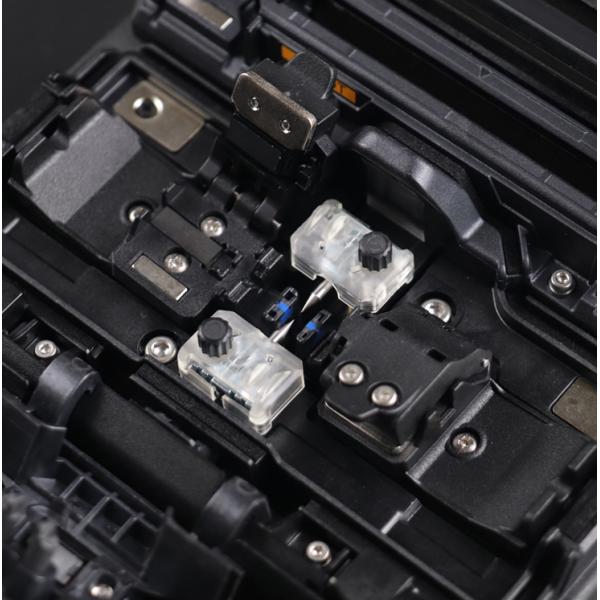

2. New Concept Electrodes
The 41S electrodes comes as an “assy” including the fixing screw. You can also rotate the
screw by hand without tools. It enables easy electrode replacement.
3. Universal Tube Heater
The 41S fusion splicer can accommodate a max 6.0mm diameter heat sleeve before
shrinking. As a result, it supports a wide range of protection sleeve sizes.
4. Work Tray
The work tray can transform into several shapes according to your optical installation style.
Applicable fiber Single / SMF(G.652/657), MMF(G.651), DSF(G.653), NZDSF(G.655)
Cladding dia. / Sheath dia. 125 um / Up to 3mm with sheath clamp
Cleave length 5mm to 16mm
Splice mode / heating mode Total 100 splice modes / 30 heating modes
Typical splice loss*s 0.03dB (SM), 0.01dB(MM), 0.05dB(DS) and 0.05dB(NZDS)
Return loss >60dB
Typical splice time 6sec SM FAST, 9sec SM AUTO
Typical tube heating time 25sec FP-03, coating dia.250um
Splice result storage Last 10,000 splices
Viewing methods / magnification 2 axis 2CMOS camera with 5.0”color LCD. 132X magnification.200X magnification after splicing
Tension test 1.96 to 2.25N
Applicable protection sleeve 60mm, 40mm and Fujikura micro sleeves
No. of splice / heating per battery full charge Typical 200 cycles with BTR-11*2
Electrode life Typical 5000 splices
Size / weight 131W x 201Dx 79H mm/ 1300g (including battery)
Operating condition

Altitude : 0 to 5,000m above sea level, Wind : 15m/sec

Temperature : -10 to 50deg C, Humidity : 0 to 95%RH, non-dew
Resistance feature*4

Shock resistance : 76cm (30inch) bottom surface drop

Dust resistance : Exposure to dust ( 0.1 to 500μm dia. Alumina Silicate) ,IP5X

Rain resistance : H=10mm/hr for 10min ,IPX2
Other features PC software upgrade / data management
Terminals USB 2.0 (Mini-B type) connector for PC communication.

4 Motor Optical Fiber Fusion Splicer , Fujikura 41s Fusion Splicer CE certificate

4 Motor Optical Fiber Fusion Splicer , Fujikura 41s Fusion Splicer CE certificate

4 Motor Optical Fiber Fusion Splicer , Fujikura 41s Fusion Splicer CE certificate

4 Motor Optical Fiber Fusion Splicer , Fujikura 41s Fusion Splicer CE certificate

4 Motor Optical Fiber Fusion Splicer , Fujikura 41s Fusion Splicer CE certificate

4 Motor Optical Fiber Fusion Splicer , Fujikura 41s Fusion Splicer CE certificate

If you interested, please contact me my following information

WhatsApp:+86 15810090955

Skype:xjm24@foxmail.com

Email:shenzhenhyx@globaltelecom.vip
